EMI shielding fabric THICKNESS (mm) 0.08

DATA VALUE

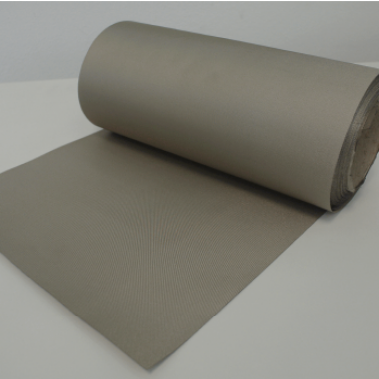

DESCRIPTION Electrically conductive fabric

APPLICATIONS Base material for room shielding base material for EMI/RFI applications

TYPE OF FABRIC Nickel Copper coated fabric

THICKNESS (mm) 0.08 +/-0.02

TYPE OF RAW MATERIAL Polyester fabric

MAX SURFACE RESISTIVITY (Ohm/sq) 0,1

COATING COMPONENT Cu+Ni

TEMPERATURE RANGE (°C) -40 to 90

TOTAL WEIGHT (g/mq) 75 +/-10

FLAMMABILITY RATING NA

COMPRESSION LEVEL (%) NA

SHIELDING EFFECTIVENESS

SAFETY DATA The product is considered "article" according to REACH (Reg. 1907/2006), so it’s

not subject neither to the obligation of safety data sheet,

nor of Classification

and labelling according to Reg 1272/2008 (CLP). Use gloves to handle and avoid

contact with irritated or injured skin
